semiring::BoolExpr Class Reference

Provenance-as-Boolean-circuit semiring. More...

#include "BoolExpr.h"

Inheritance diagram for semiring::BoolExpr:

Collaboration diagram for semiring::BoolExpr:

Public Member Functions
	BoolExpr (BooleanCircuit &bc)
	Construct a BoolExpr semiring over the given circuit.
value_type	zero () const override
	Return the additive identity \(\mathbb{0}\).
value_type	one () const override
	Return the multiplicative identity \(\mathbb{1}\).
value_type	plus (const std::vector< value_type > &vec) const override
	Apply the additive operation to a list of values.
value_type	times (const std::vector< value_type > &vec) const override
	Apply the multiplicative operation to a list of values.
virtual value_type	monus (value_type x, value_type y) const override
	Apply the monus (m-semiring difference) operation.
value_type	delta (value_type x) const override
	Apply the \(\delta\) operator.
virtual bool	absorptive () const override
	Return true if this semiring is absorptive ( \(a \oplus a = a\)).
Public Member Functions inherited from semiring::Semiring< gate_t >
virtual value_type	cmp (value_type s1, ComparisonOperator op, value_type s2) const
	Evaluate a comparison gate.
virtual value_type	semimod (value_type x, value_type s) const
	Apply a semimodule scalar multiplication.
virtual value_type	agg (AggregationOperator op, const std::vector< value_type > &s)
	Evaluate an aggregation gate.
virtual value_type	value (const std::string &s) const
	Interpret a literal string as a semiring value.
virtual	~Semiring ()=default

Private Types
using	value_t = gate_t
	Carrier type: a gate ID in the target BooleanCircuit.

Private Attributes
BooleanCircuit &	c
	The Boolean circuit being constructed.
const gate_t	ZERO
	Pre-allocated zero gate (OR with no children)
const gate_t	ONE
	Pre-allocated one gate (AND with no children)

Additional Inherited Members
Public Types inherited from semiring::Semiring< gate_t >
typedef gate_t	value_type
	The carrier type of this semiring.

Detailed Description

Provenance-as-Boolean-circuit semiring.

The carrier type is gate_t (a gate identifier in BooleanCircuit). Evaluating the provenance circuit over this semiring constructs a new Boolean circuit expressing the provenance formula.

Definition at line 42 of file BoolExpr.h.

Member Typedef Documentation

value_t

using semiring::BoolExpr::value_t = gate_t

private

Carrier type: a gate ID in the target BooleanCircuit.

Definition at line 43 of file BoolExpr.h.

Constructor & Destructor Documentation

BoolExpr()

semiring::BoolExpr::BoolExpr ( BooleanCircuit &  bc )

inline

Construct a BoolExpr semiring over the given circuit.

Parameters

bc	The Boolean circuit in which semiring operations create new gates.

Definition at line 54 of file BoolExpr.h.

Member Function Documentation

absorptive()

virtual bool semiring::BoolExpr::absorptive ( ) const

inlineoverridevirtual

Return true if this semiring is absorptive ( \(a \oplus a = a\)).

When true, the circuit evaluator may deduplicate the children of plus gates, which can improve performance significantly for semirings such as Boolean and Why-provenance.

Returns

false by default; override to return true.

Reimplemented from semiring::Semiring< gate_t >.

Definition at line 115 of file BoolExpr.h.

delta()

value_type semiring::BoolExpr::delta ( value_type  x ) const

inlineoverridevirtual

Apply the \(\delta\) operator.

Parameters

x	Input value.

Returns

\(\delta(x)\).

Implements semiring::Semiring< gate_t >.

Definition at line 111 of file BoolExpr.h.

monus()

virtual value_type semiring::BoolExpr::monus ( value_type  x, value_type  y  ) const

inlineoverridevirtual

Apply the monus (m-semiring difference) operation.

Parameters

x	Minuend.
y	Subtrahend.

Returns

\(x \ominus y\).

Implements semiring::Semiring< gate_t >.

Definition at line 97 of file BoolExpr.h.

Here is the call graph for this function:

one()

value_type semiring::BoolExpr::one ( ) const

inlineoverridevirtual

Return the multiplicative identity \(\mathbb{1}\).

Returns

The one element of the semiring.

Implements semiring::Semiring< gate_t >.

Definition at line 61 of file BoolExpr.h.

plus()

value_type semiring::BoolExpr::plus ( const std::vector< value_type > &  v ) const

inlineoverridevirtual

Apply the additive operation to a list of values.

Parameters

v	Ordered list of operands (empty list should return zero()).

Returns

\(v_0 \oplus v_1 \oplus \cdots\).

Implements semiring::Semiring< gate_t >.

Definition at line 65 of file BoolExpr.h.

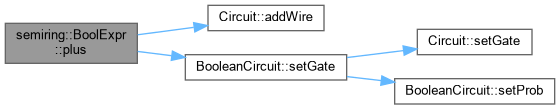

Here is the call graph for this function:

times()

value_type semiring::BoolExpr::times ( const std::vector< value_type > &  v ) const

inlineoverridevirtual

Apply the multiplicative operation to a list of values.

Parameters

v	Ordered list of operands (empty list should return one()).

Returns

\(v_0 \otimes v_1 \otimes \cdots\).

Implements semiring::Semiring< gate_t >.

Definition at line 81 of file BoolExpr.h.

Here is the call graph for this function:

zero()

value_type semiring::BoolExpr::zero ( ) const

inlineoverridevirtual

Return the additive identity \(\mathbb{0}\).

Returns

The zero element of the semiring.

Implements semiring::Semiring< gate_t >.

Definition at line 57 of file BoolExpr.h.

Member Data Documentation

c

BooleanCircuit& semiring::BoolExpr::c

private

The Boolean circuit being constructed.

Definition at line 45 of file BoolExpr.h.

ONE

const gate_t semiring::BoolExpr::ONE

private

Pre-allocated one gate (AND with no children)

Definition at line 47 of file BoolExpr.h.

ZERO

const gate_t semiring::BoolExpr::ZERO

private

Pre-allocated zero gate (OR with no children)

Definition at line 46 of file BoolExpr.h.

---

The documentation for this class was generated from the following file:

• /home/pierre/git/software/provsql/src/semiring/BoolExpr.h
