Circuit.h File Reference

Generic directed-acyclic-graph circuit template and gate identifier. More...

#include <unordered_map>
#include <unordered_set>
#include <iostream>
#include <set>
#include <vector>
#include <type_traits>

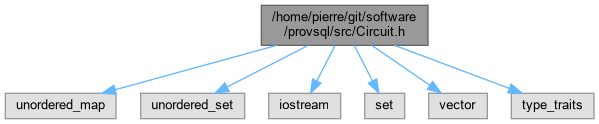

Include dependency graph for Circuit.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Circuit< gateType >
	Generic template base class for provenance circuits. More...
class	CircuitException
	Exception type thrown by circuit operations on invalid input. More...

Enumerations
enum class	gate_t : size_t
	Strongly-typed gate identifier. More...

Functions
gate_t &	operator++ (gate_t &g)
	Pre-increment operator for gate_t.
bool	operator< (gate_t t, std::vector< gate_t >::size_type u)
	Compare a gate_t against a std::vector size type.
std::string	to_string (gate_t g)
	Convert a gate_t to its decimal string representation.
std::istream &	operator>> (std::istream &i, gate_t &g)
	Read a gate_t from an input stream.
std::ostream &	operator<< (std::ostream &o, gate_t g)
	Write a gate_t to an output stream as its decimal value.

Detailed Description

Generic directed-acyclic-graph circuit template and gate identifier.

This header provides two central abstractions:

@c gate_t

A strongly-typed wrapper around size_t used as a compact gate identifier within a circuit. Using a distinct type prevents accidental mixing of gate IDs with plain integers. Helper operators (increment, comparison, stream I/O, to_string) make it convenient to use in loops and containers.

@c Circuit<gateType>

A CRTP-style template base class for all circuit variants in ProvSQL (BooleanCircuit, GenericCircuit, DotCircuit, WhereCircuit). A circuit is a directed acyclic graph where:

• Each gate has a type drawn from gateType (a user-supplied enum).
• Wires are directed edges from parent gates to their children.
• Each gate may optionally be associated with a UUID string, enabling round-tripping between the in-memory circuit and the persistent mmap representation.

Circuit.hpp (included by subclass headers) provides the out-of-line template method implementations.

@c CircuitException

Exception type thrown when a circuit operation fails (e.g. UUID not found, type mismatch).

Definition in file Circuit.h.

Enumeration Type Documentation

gate_t

enum class gate_t : size_t

strong

Strongly-typed gate identifier.

Wraps a size_t so that gate IDs are not accidentally used as plain integers. The underlying value is a zero-based index into the circuit's gate and wire vectors.

Definition at line 48 of file Circuit.h.

Function Documentation

operator++()

gate_t & operator++ ( gate_t &  g )

inline

Pre-increment operator for gate_t.

Parameters

g	Gate to increment.

Returns

Reference to the incremented gate.

Definition at line 229 of file Circuit.h.

operator<()

bool operator< ( gate_t  t, std::vector< gate_t >::size_type  u  )

inline

Compare a gate_t against a std::vector size type.

Parameters

t	Gate identifier.
u	Vector size to compare against.

Returns

true if the underlying integer of t is less than u.

Definition at line 239 of file Circuit.h.

operator<<()

std::ostream & operator<< ( std::ostream &  o, gate_t  g  )

inline

Write a gate_t to an output stream as its decimal value.

Parameters

o	Output stream.
g	Gate identifier to write.

Returns

Reference to o.

Definition at line 273 of file Circuit.h.

operator>>()

std::istream & operator>> ( std::istream &  i, gate_t &  g  )

inline

Read a gate_t from an input stream.

Parameters

i	Input stream.
g	Gate to populate.

Returns

Reference to i.

Definition at line 259 of file Circuit.h.

to_string()

std::string to_string ( gate_t  g )

inline

Convert a gate_t to its decimal string representation.

Parameters

g	Gate identifier.

Returns

Decimal string of the underlying integer.

Definition at line 249 of file Circuit.h.

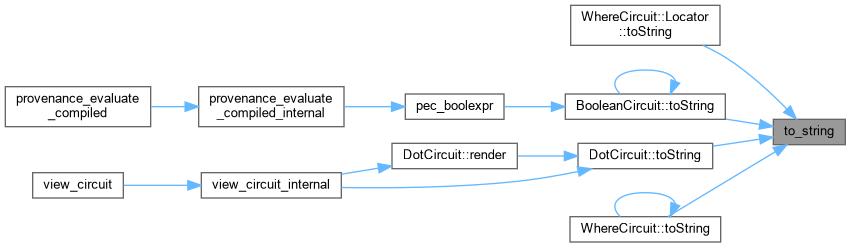

Here is the caller graph for this function:
