WhereCircuit Class Reference

Circuit encoding where-provenance (column-level data origin). More...

#include "WhereCircuit.h"

Inheritance diagram for WhereCircuit:

Collaboration diagram for WhereCircuit:

Classes
struct	Locator
	Describes the origin of a single attribute value. More...

Public Member Functions
gate_t	setGate (const uuid &u, WhereGate type) override
	Create or update the gate associated with UUID u.
gate_t	setGateInput (const uuid &u, std::string table, int nb_columns)
	Create an input gate for a specific table row.
gate_t	setGateProjection (const uuid &u, std::vector< int > &&infos)
	Create a projection gate with column mapping.
gate_t	setGateEquality (const uuid &u, int pos1, int pos2)
	Create an equality (equijoin) gate for two attribute positions.
std::string	toString (gate_t g) const override
	Return a textual description of gate g for debugging.
std::vector< std::set< Locator > >	evaluate (gate_t g) const
	Evaluate the where-provenance circuit at gate g.
Public Member Functions inherited from Circuit< WhereGate >
virtual	~Circuit ()
std::vector< gate_t >::size_type	getNbGates () const
	Return the total number of gates in the circuit.
gate_t	getGate (const uuid &u)
	Return (or create) the gate associated with UUID u.
uuid	getUUID (gate_t g) const
	Return the UUID string associated with gate g.
WhereGate	getGateType (gate_t g) const
	Return the type of gate g.
std::vector< gate_t > &	getWires (gate_t g)
	Return a mutable reference to the child-wire list of gate g.
const std::vector< gate_t > &	getWires (gate_t g) const
	Return a const reference to the child-wire list of gate g.
virtual gate_t	setGate (const uuid &u, WhereGate type)
	Create or update the gate associated with UUID u.
virtual gate_t	setGate (WhereGate type)
	Allocate a new gate with type type and no UUID.
bool	hasGate (const uuid &u) const
	Test whether a gate with UUID u exists.
void	addWire (gate_t f, gate_t t)
	Add a directed wire from gate f (parent) to gate t (child).

Private Attributes
std::unordered_map< gate_t, uuid >	input_token
	UUID of the source tuple for each IN gate.
std::unordered_map< gate_t, std::pair< std::string, int > >	input_info
	(table name, nb_columns) for each IN gate
std::unordered_map< gate_t, std::vector< int > >	projection_info
	Projected attribute positions for PROJECT gates.
std::unordered_map< gate_t, std::pair< int, int > >	equality_info
	Joined attribute pair (pos1, pos2) for EQ gates.

Additional Inherited Members
Public Types inherited from Circuit< WhereGate >
using	uuid = std::string
	UUID type used in this circuit (always std::string).
Protected Member Functions inherited from Circuit< WhereGate >
void	setGateType (gate_t g, WhereGate t)
	Update the type of an existing gate.
virtual gate_t	addGate ()
	Allocate a new gate with a default-initialised type.
Protected Attributes inherited from Circuit< WhereGate >
std::unordered_map< uuid, gate_t >	uuid2id
	UUID string → gate index.
std::unordered_map< gate_t, uuid >	id2uuid
	Gate index → UUID string.
std::vector< WhereGate >	gates
	Gate type for each gate.
std::vector< std::vector< gate_t > >	wires
	Child wire lists for each gate.

Detailed Description

Circuit encoding where-provenance (column-level data origin).

Stores extra per-gate metadata that relates each gate to its position in the original query plan (table name, row UUID, column index).

Definition at line 53 of file WhereCircuit.h.

Member Function Documentation

evaluate()

vector< set< WhereCircuit::Locator > > WhereCircuit::evaluate

(

gate_t

g

)

const

Evaluate the where-provenance circuit at gate g.

Returns one set of Locator values per output column position. Each Locator in the set identifies a base-relation cell that contributed the value at that output position.

Parameters

g	Root gate to evaluate.

Returns

Vector (indexed by output column) of sets of Locator values.

Definition at line 102 of file WhereCircuit.cpp.

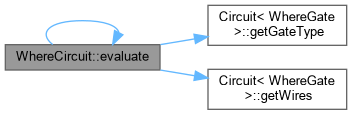

Here is the call graph for this function:

Here is the caller graph for this function:

setGate()

gate_t WhereCircuit::setGate ( const uuid &  u, WhereGate  type  )

override

Create or update the gate associated with UUID u.

If the UUID is already mapped the existing gate's type is updated. Otherwise a new gate is allocated.

Parameters

u	UUID string to associate with the gate.
type	Gate type.

Returns

Gate identifier.

Definition at line 30 of file WhereCircuit.cpp.

Here is the call graph for this function:

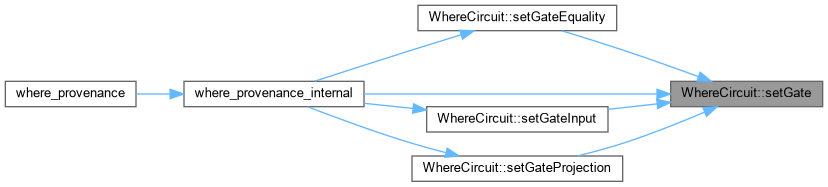

Here is the caller graph for this function:

setGateEquality()

gate_t WhereCircuit::setGateEquality	(	const uuid &	u,
		int	pos1,
		int	pos2
	)

Create an equality (equijoin) gate for two attribute positions.

Parameters

u	UUID to associate with this gate.
pos1	Left-side attribute position.
pos2	Right-side attribute position.

Returns

Gate identifier.

Definition at line 42 of file WhereCircuit.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setGateInput()

gate_t WhereCircuit::setGateInput	(	const uuid &	u,
		std::string	table,
		int	nb_columns
	)

Create an input gate for a specific table row.

Parameters

u	UUID of the source tuple (row token).
table	Name of the source relation.
nb_columns	Number of columns in the source tuple.

Returns

Gate identifier.

Definition at line 49 of file WhereCircuit.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setGateProjection()

gate_t WhereCircuit::setGateProjection	(	const uuid &	u,
		std::vector< int > &&	infos
	)

Create a projection gate with column mapping.

Parameters

u	UUID to associate with this gate.
infos	List of attribute positions surviving the projection.

Returns

Gate identifier.

Definition at line 35 of file WhereCircuit.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

toString()

string WhereCircuit::toString ( gate_t  g ) const

overridevirtual

Return a textual description of gate g for debugging.

Pure virtual; each concrete circuit class provides its own formatting.

Parameters

g	Gate to describe.

Returns

Human-readable string.

Implements Circuit< WhereGate >.

Definition at line 57 of file WhereCircuit.cpp.

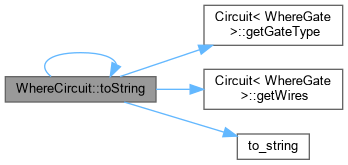

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

equality_info

std::unordered_map<gate_t, std::pair<int,int> > WhereCircuit::equality_info

private

Joined attribute pair (pos1, pos2) for EQ gates.

Definition at line 58 of file WhereCircuit.h.

input_info

std::unordered_map<gate_t, std::pair<std::string,int> > WhereCircuit::input_info

private

(table name, nb_columns) for each IN gate

Definition at line 56 of file WhereCircuit.h.

input_token

std::unordered_map<gate_t, uuid> WhereCircuit::input_token

private

UUID of the source tuple for each IN gate.

Definition at line 55 of file WhereCircuit.h.

projection_info

std::unordered_map<gate_t, std::vector<int> > WhereCircuit::projection_info

private

Projected attribute positions for PROJECT gates.

Definition at line 57 of file WhereCircuit.h.

---

The documentation for this class was generated from the following files:

• /home/pierre/git/software/provsql/src/WhereCircuit.h
• /home/pierre/git/software/provsql/src/WhereCircuit.cpp
