WhereCircuit.h File Reference

Where-provenance circuit tracking column-level data origin. More...

#include <set>
#include <vector>
#include <utility>
#include "Circuit.hpp"

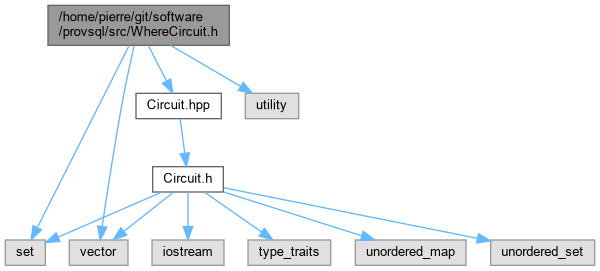

Include dependency graph for WhereCircuit.h:

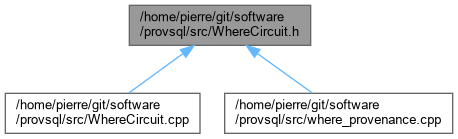

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	WhereCircuit
	Circuit encoding where-provenance (column-level data origin). More...
struct	WhereCircuit::Locator
	Describes the origin of a single attribute value. More...

Enumerations
enum class	WhereGate {   UNDETERMINED , TIMES , PLUS , EQ ,   PROJECT , IN }
	Gate types for a where-provenance circuit. More...

Detailed Description

Where-provenance circuit tracking column-level data origin.

Where-provenance records not just which base tuples contributed to a query result, but also which attribute values in those base tuples gave rise to each output column.

WhereCircuit extends Circuit<WhereGate> with per-gate metadata that describes:

• Input gates – the source table, row UUID, and number of columns.
• Projection gates – the list of attribute positions being projected.
• Equality gates – the pair of attribute positions being joined.

The evaluate() method traverses the circuit and returns, for each output position, a set of Locator values identifying the base (table, tuple, column) triples that the value was copied from.

Definition in file WhereCircuit.h.

Enumeration Type Documentation

WhereGate

enum class WhereGate

strong

Gate types for a where-provenance circuit.

• UNDETERMINED Placeholder; should not appear in a complete circuit.
• TIMES Product (conjunction) of child where-provenance sets.
• PLUS Sum (disjunction) of child where-provenance sets.
• EQ Equijoin gate recording the joined attribute pair.
• PROJECT Projection gate recording which attributes are kept.
• IN Input gate for a single base-relation tuple.

Enumerator
UNDETERMINED	Placeholder; should not appear in a complete circuit.
TIMES	Product (conjunction) of child where-provenance sets.
PLUS	Sum (disjunction) of child where-provenance sets.
EQ	Equijoin gate recording the joined attribute pair.
PROJECT	Projection gate recording which attributes are kept.
IN	Input gate for a single base-relation tuple.

Definition at line 38 of file WhereCircuit.h.
