DotCircuit Class Reference

Circuit specialisation for GraphViz DOT rendering. More...

#include "DotCircuit.h"

Inheritance diagram for DotCircuit:

Collaboration diagram for DotCircuit:

Public Member Functions
gate_t	addGate () override
	Allocate a new gate with a default-initialised type.
gate_t	setGate (const uuid &u, DotGate type) override
	Create or update the gate associated with UUID u.
gate_t	setGate (const uuid &u, DotGate t, std::string d)
	Create (or update) a gate with a UUID, type, and description.
std::string	render () const
	Render the entire circuit as a GraphViz DOT digraph string.
virtual std::string	toString (gate_t g) const override
	Return a textual description of gate g for debugging.
virtual gate_t	setGate (const uuid &u, gateType type)
	Create or update the gate associated with UUID u.
virtual gate_t	setGate (gateType type)
	Allocate a new gate with type type and no UUID.
Public Member Functions inherited from Circuit< DotGate >
virtual	~Circuit ()
std::vector< gate_t >::size_type	getNbGates () const
	Return the total number of gates in the circuit.
gate_t	getGate (const uuid &u)
	Return (or create) the gate associated with UUID u.
uuid	getUUID (gate_t g) const
	Return the UUID string associated with gate g.
DotGate	getGateType (gate_t g) const
	Return the type of gate g.
std::vector< gate_t > &	getWires (gate_t g)
	Return a mutable reference to the child-wire list of gate g.
const std::vector< gate_t > &	getWires (gate_t g) const
	Return a const reference to the child-wire list of gate g.
bool	hasGate (const uuid &u) const
	Test whether a gate with UUID u exists.
void	addWire (gate_t f, gate_t t)
	Add a directed wire from gate f (parent) to gate t (child).

Private Attributes
std::set< gate_t >	inputs
	Input gate IDs (rendered as leaf nodes)
std::vector< std::string >	desc
	Per-gate label strings (indexed by gate ID)

Additional Inherited Members
Public Types inherited from Circuit< DotGate >
using	uuid = std::string
	UUID type used in this circuit (always std::string).
Protected Member Functions inherited from Circuit< DotGate >
void	setGateType (gate_t g, DotGate t)
	Update the type of an existing gate.
Protected Attributes inherited from Circuit< DotGate >
std::unordered_map< uuid, gate_t >	uuid2id
	UUID string → gate index.
std::unordered_map< gate_t, uuid >	id2uuid
	Gate index → UUID string.
std::vector< DotGate >	gates
	Gate type for each gate.
std::vector< std::vector< gate_t > >	wires
	Child wire lists for each gate.

Detailed Description

Circuit specialisation for GraphViz DOT rendering.

Extends Circuit<DotGate> with per-gate description strings and a render() method that produces a complete DOT digraph.

Definition at line 61 of file DotCircuit.h.

Member Function Documentation

addGate()

gate_t DotCircuit::addGate ( )

overridevirtual

Allocate a new gate with a default-initialised type.

Derived classes override this to perform additional initialisation (e.g. resizing auxiliary vectors).

Returns

The gate_t identifier of the newly created gate.

Reimplemented from Circuit< DotGate >.

Definition at line 46 of file DotCircuit.cpp.

Here is the call graph for this function:

render()

std::string DotCircuit::render

(

)

const

Render the entire circuit as a GraphViz DOT digraph string.

The returned string can be written to a file and processed with dot, neato, or graph-easy.

Returns

DOT representation of the circuit.

Definition at line 144 of file DotCircuit.cpp.

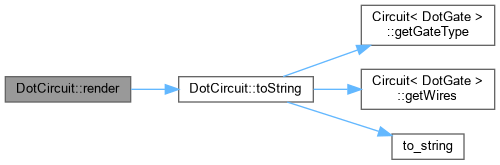

Here is the call graph for this function:

Here is the caller graph for this function:

setGate() [1/4]

gate_t DotCircuit::setGate	(	const uuid &	u,
		DotGate	t,
		std::string	d
	)

Create (or update) a gate with a UUID, type, and description.

The d string is used as the node label in the DOT output.

Parameters

u	UUID of the gate.
t	Gate type.
d	Description / label string for this gate.

Returns

Gate identifier.

Definition at line 39 of file DotCircuit.cpp.

Here is the call graph for this function:

setGate() [2/4]

gate_t DotCircuit::setGate ( const uuid &  u, DotGate  type  )

override

Create or update the gate associated with UUID u.

If the UUID is already mapped the existing gate's type is updated. Otherwise a new gate is allocated.

Parameters

u	UUID string to associate with the gate.
type	Gate type.

Returns

Gate identifier.

Definition at line 31 of file DotCircuit.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setGate() [3/4]

gate_t Circuit< gateType >::setGate ( const uuid &  u, gateType  type  )

virtual

Create or update the gate associated with UUID u.

If the UUID is already mapped the existing gate's type is updated. Otherwise a new gate is allocated.

Parameters

u	UUID string to associate with the gate.
type	Gate type.

Returns

Gate identifier.

Reimplemented from Circuit< DotGate >.

Definition at line 164 of file Circuit.hpp.

setGate() [4/4]

gate_t Circuit< gateType >::setGate ( gateType  type )

virtual

Allocate a new gate with type type and no UUID.

Parameters

type	Gate type.

Returns

Gate identifier.

Reimplemented from Circuit< DotGate >.

Definition at line 171 of file Circuit.hpp.

toString()

std::string DotCircuit::toString ( gate_t  g ) const

overridevirtual

Return a textual description of gate g for debugging.

Pure virtual; each concrete circuit class provides its own formatting.

Parameters

g	Gate to describe.

Returns

Human-readable string.

Implements Circuit< DotGate >.

Definition at line 54 of file DotCircuit.cpp.

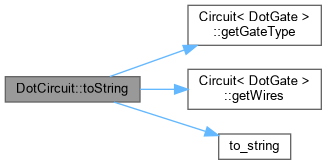

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

desc

std::vector<std::string> DotCircuit::desc

private

Per-gate label strings (indexed by gate ID)

Definition at line 64 of file DotCircuit.h.

inputs

std::set<gate_t> DotCircuit::inputs

private

Input gate IDs (rendered as leaf nodes)

Definition at line 63 of file DotCircuit.h.

---

The documentation for this class was generated from the following files:

• /home/pierre/git/software/provsql/src/DotCircuit.h
• /home/pierre/git/software/provsql/src/DotCircuit.cpp
