DotCircuit.h File Reference

Provenance circuit variant that renders to GraphViz DOT format. More...

#include <unordered_map>
#include <unordered_set>
#include <set>
#include <vector>
#include "Circuit.hpp"

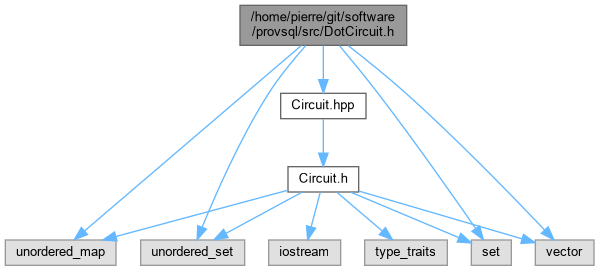

Include dependency graph for DotCircuit.h:

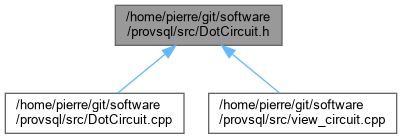

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	DotCircuit
	Circuit specialisation for GraphViz DOT rendering. More...

Enumerations
enum class	DotGate {   UNDETERMINED , OTIMES , OPLUS , OMINUS ,   OMINUSR , OMINUSL , PROJECT , EQ ,   IN , DELTA }
	Gate types for a DOT visualisation circuit. More...

Detailed Description

Provenance circuit variant that renders to GraphViz DOT format.

DotCircuit is a lightweight circuit specialisation used exclusively for visualisation. It stores a textual description (desc) alongside each gate so that the rendered DOT graph can label nodes with meaningful provenance formula symbols (⊗, ⊕, ⊖, δ, etc.).

The render() method traverses the circuit and produces a complete GraphViz digraph string that can be piped to dot or displayed with graph-easy.

Definition in file DotCircuit.h.

Enumeration Type Documentation

DotGate

enum class DotGate

strong

Gate types for a DOT visualisation circuit.

Each value corresponds to a semiring operator or special gate kind, and is rendered as the appropriate mathematical symbol in the output.

• UNDETERMINED Placeholder, should not appear in a finished circuit.
• OTIMES Semiring times (⊗).
• OPLUS Semiring plus (⊕).
• OMINUS Semiring monus (⊖), full.
• OMINUSR Monus, right child only.
• OMINUSL Monus, left child only.
• PROJECT Projection gate.
• EQ Equijoin gate.
• IN Input (variable) gate.
• DELTA δ-semiring operator.

Enumerator
UNDETERMINED	Placeholder gate not yet assigned a type.
OTIMES	Semiring times (⊗)
OPLUS	Semiring plus (⊕)
OMINUS	Semiring monus (⊖), full.
OMINUSR	Monus, right child only.
OMINUSL	Monus, left child only.
PROJECT	Projection gate.
EQ	Equijoin gate.
IN	Input (variable) gate.
DELTA	δ-semiring operator

Definition at line 41 of file DotCircuit.h.
