Tree decomposition of a Boolean circuit's primal graph. More...

#include "TreeDecomposition.h"

Public Types
template<class T>
using	small_vector = boost::container::static_vector<T, MAX_TREEWIDTH+1>
	Stack-allocated vector type bounded by `MAX_TREEWIDTH+1` elements.
using	Bag = flat_set<gate_t, small_vector>
	The type of a bag: a small flat set of gate IDs.

Public Member Functions
	TreeDecomposition (const BooleanCircuit &bc)
	Compute a tree decomposition of the primal graph of `bc`.
	TreeDecomposition (Graph graph, std::unordered_map< unsigned long, bag_t > *elimination_bag=nullptr)
	Compute a tree decomposition of an arbitrary undirected graph.
const Bag &	getBag (bag_t b) const
	Const access to bag `b`.
const std::vector< bag_t > &	getChildren (bag_t b) const
	Const access to the children of bag `b`.
bag_t	getParent (bag_t b) const
	Return the parent of bag `b`.
bag_t	getRoot () const
	Return the root bag of the decomposition.
std::size_t	getNbBags () const
	Return the number of bags in the decomposition.
	TreeDecomposition (std::istream &in)
	Parse a tree decomposition from a stream (PACE challenge format).
	TreeDecomposition (const TreeDecomposition &td)
	Copy constructor.
TreeDecomposition &	operator= (const TreeDecomposition &td)
	Copy assignment.
unsigned	getTreewidth () const
	Return the treewidth of this decomposition.
void	makeFriendly (gate_t root)
	Restructure the tree into the friendly normal form.
std::string	toDot () const
	Render the tree decomposition as a GraphViz DOT string.

Static Public Member Functions
static unsigned	degeneracyLowerBound (const BooleanCircuit &bc, unsigned &max_degree)
	Cheap degeneracy lower bound on the treewidth of `bc's` primal graph.
static unsigned	degeneracyLowerBound (const Graph &graph, unsigned &max_degree)
	Degeneracy lower bound over an arbitrary graph.

Static Public Attributes
static constexpr int	MAX_TREEWIDTH = 10
	Maximum supported treewidth.
static constexpr int	OPTIMAL_ARITY = 2
	Preferred maximum arity of bags in the friendly form.

Private Member Functions
	TreeDecomposition ()=default
bag_t	findGateConnection (gate_t v) const
	Find the bag whose gate set is closest to gate `v` (for rooting).
void	reroot (bag_t bag)
	Re-root the tree so that `bag` becomes the root.
bag_t	addEmptyBag (bag_t parent, const std::vector< bag_t > &children=std::vector< bag_t >())
	Insert a new empty bag as a child of `parent`.
void	addGateToBag (gate_t g, bag_t b)
	Add gate `g` to the contents of bag `b`.
Bag &	getBag (bag_t b)
	Mutable access to bag `b`.
std::vector< bag_t > &	getChildren (bag_t b)
	Mutable access to the children of bag `b`.
void	setParent (bag_t b, bag_t p)
	Set the parent of bag `b` to `p`.

Private Attributes
std::vector< Bag >	bags
	Bag contents, indexed by `bag_t`.
std::vector< bag_t >	parent
	Parent of each bag (root points to itself).
std::vector< std::vector< bag_t > >	children
	Children of each bag.
bag_t	root
	Identifier of the root bag.
unsigned	treewidth
	Treewidth of the decomposition.

Friends
class	dDNNFTreeDecompositionBuilder
std::istream &	operator>> (std::istream &in, TreeDecomposition &td)
	Read a tree decomposition in PACE challenge format.

Detailed Description

Tree decomposition of a Boolean circuit's primal graph.

Provides constructors that compute the decomposition from a BooleanCircuit using the min-fill heuristic, or parse it from an input stream. After construction, makeFriendly() restructures the tree into the "friendly" normal form required by dDNNFTreeDecompositionBuilder.

Definition at line 58 of file TreeDecomposition.h.

Member Typedef Documentation

◆ Bag

using TreeDecomposition::Bag = flat_set<gate_t, small_vector>

The type of a bag: a small flat set of gate IDs.

Definition at line 74 of file TreeDecomposition.h.

◆ small_vector

template<class T>

using TreeDecomposition::small_vector = boost::container::static_vector<T, MAX_TREEWIDTH+1>

Stack-allocated vector type bounded by MAX_TREEWIDTH+1 elements.

Used for bag contents to avoid heap allocation for small, bounded sets.

Definition at line 71 of file TreeDecomposition.h.

Constructor & Destructor Documentation

◆ TreeDecomposition() [1/5]

TreeDecomposition::TreeDecomposition ( )

privatedefault

Here is the caller graph for this function:

◆ TreeDecomposition() [2/5]

TreeDecomposition::TreeDecomposition ( const BooleanCircuit & bc )

Compute a tree decomposition of the primal graph of bc.

Uses the min-fill elimination ordering heuristic. Throws TreeDecompositionException if the computed treewidth exceeds MAX_TREEWIDTH.

Parameters

bc	The Boolean circuit to decompose.

Definition at line 381 of file TreeDecomposition.cpp.

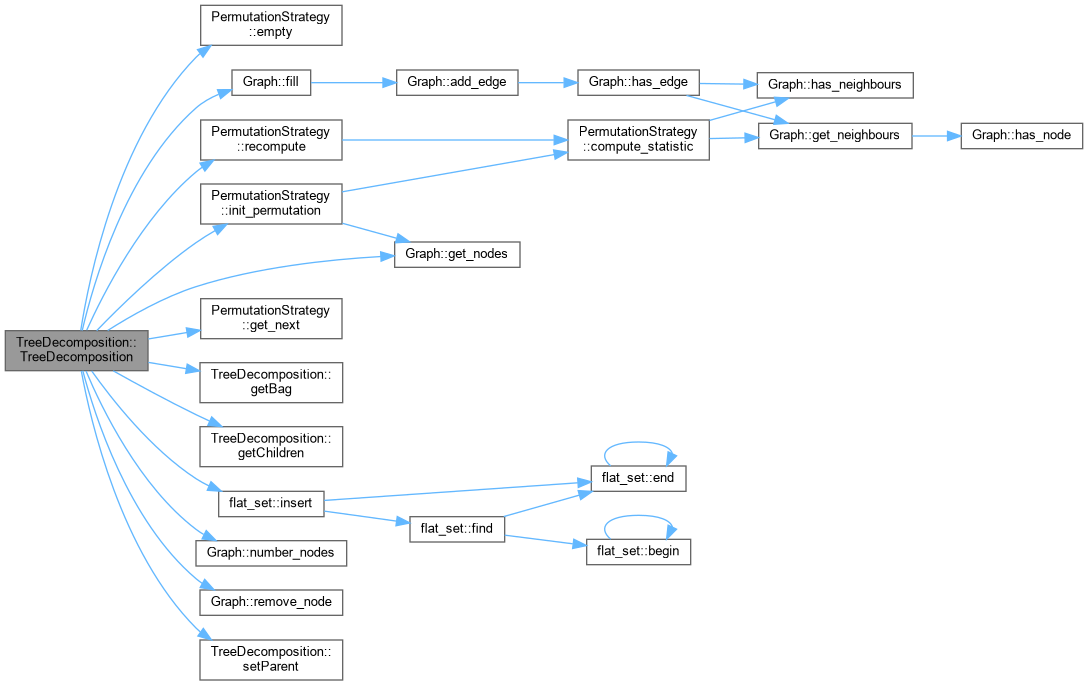

Here is the call graph for this function:

◆ TreeDecomposition() [3/5]

TreeDecomposition::TreeDecomposition	(	Graph	graph,
		std::unordered_map< unsigned long, bag_t > *	elimination_bag = nullptr )

Compute a tree decomposition of an arbitrary undirected graph.

Same min-fill elimination ordering heuristic as the BooleanCircuit constructor (which delegates here), but over a caller-supplied Graph – e.g. the Gaifman graph of a relational instance, when exploiting bounded-treewidth data rather than a bounded-treewidth circuit. Bag elements are then the graph's node IDs (wrapped in gate_t). Throws TreeDecompositionException if the computed treewidth exceeds MAX_TREEWIDTH.

Parameters

graph	The graph to decompose (consumed: the elimination process empties it).
elimination_bag	If non-null, receives for every node the bag created when that node was eliminated (nodes remaining after the elimination loop map to the final root bag). By the elimination invariant, for every edge (u,v) of the graph the earlier-eliminated endpoint's bag contains both `u` and `v`, which gives a constant-time edge-to-bag assignment.

Definition at line 387 of file TreeDecomposition.cpp.

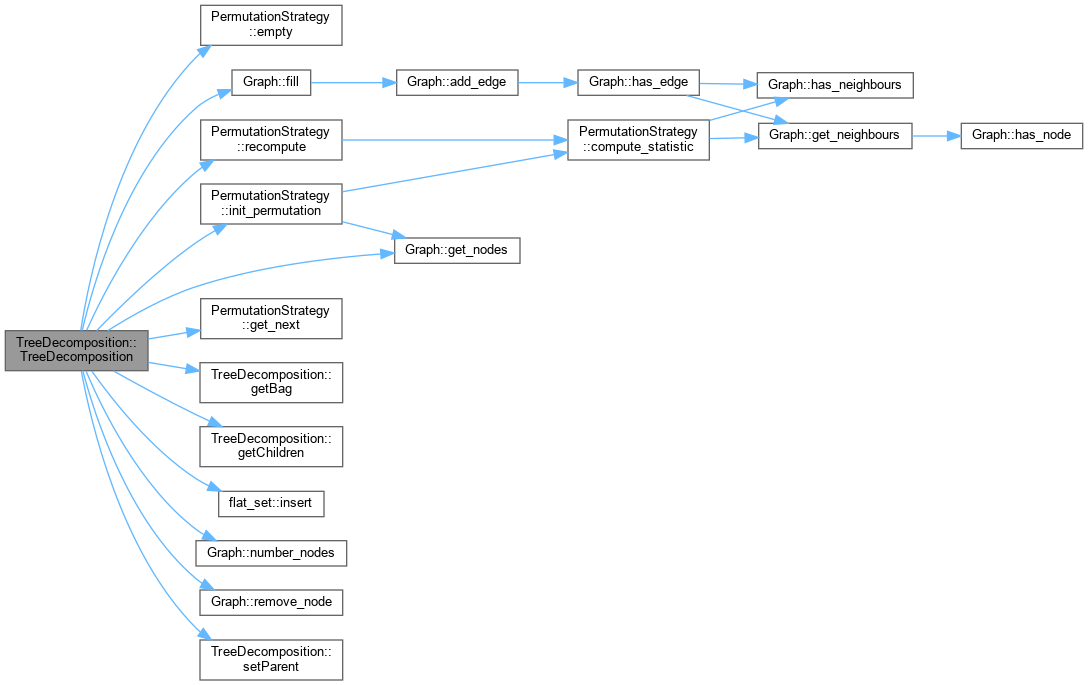

Here is the call graph for this function:

◆ TreeDecomposition() [4/5]

TreeDecomposition::TreeDecomposition ( std::istream & in )

Parse a tree decomposition from a stream (PACE challenge format).

Parameters

in	Input stream containing the decomposition.

Definition at line 131 of file TreeDecomposition.cpp.

◆ TreeDecomposition() [5/5]

TreeDecomposition::TreeDecomposition ( const TreeDecomposition & td )

Copy constructor.

Parameters

td	Source decomposition.

Here is the call graph for this function:

Member Function Documentation

◆ addEmptyBag()

bag_t TreeDecomposition::addEmptyBag	(	bag_t	parent,
		const std::vector< bag_t > &	children = std::vector<bag_t>() )

private

Insert a new empty bag as a child of parent.

Parameters

parent	Parent bag of the new empty bag.
children	Children to transfer from `parent` to the new bag.

Returns: ID of the newly created bag.

Definition at line 256 of file TreeDecomposition.cpp.

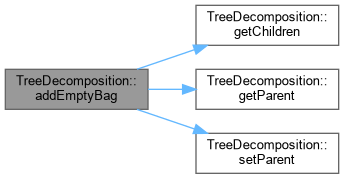

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addGateToBag()

void TreeDecomposition::addGateToBag	(	gate_t	g,
		bag_t	b )

private

Add gate g to the contents of bag b.

Parameters

g	Gate to add.
b	Destination bag.

Definition at line 276 of file TreeDecomposition.cpp.

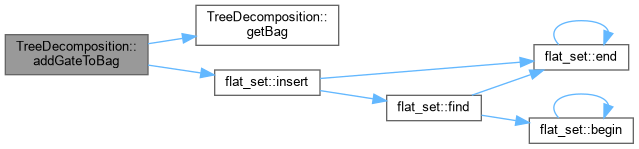

Here is the call graph for this function:

Here is the caller graph for this function:

◆ degeneracyLowerBound() [1/2]

unsigned TreeDecomposition::degeneracyLowerBound	(	const BooleanCircuit &	bc,
		unsigned &	max_degree )

static

Cheap degeneracy lower bound on the treewidth of bc's primal graph.

Computes the degeneracy \(\delta D(G)\) (Maximum Minimum Degree) by a linear-time min-degree peel (Matula-Beck): repeatedly remove a minimum-degree node, the bound being the largest degree any node has at its own removal. \(\delta D(G) \le \mathrm{tw}(G)\) (Maniu, Senellart, Jog, ICDT 2019, the fastest and best-behaved cheap lower bound there), so a value above MAX_TREEWIDTH proves the full min-fill build would fail – letting a caller skip the (costlier) attempt. O(V+E), no decomposition built.

The maximum degree \(\Delta\) falls out of the same single pass (it bounds the per-step fill-in work of the min-fill build), so it is returned alongside.

Parameters

bc	The Boolean circuit.
max_degree	Output: the maximum degree of the primal graph.

Returns: A lower bound on the circuit primal graph's treewidth.

Definition at line 58 of file TreeDecomposition.cpp.

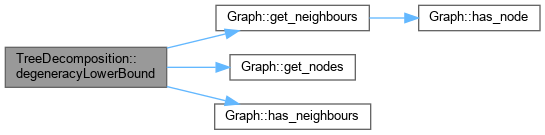

Here is the call graph for this function:

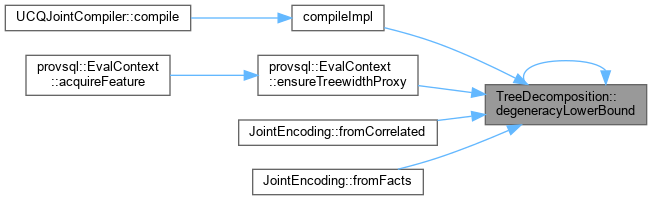

Here is the caller graph for this function:

◆ degeneracyLowerBound() [2/2]

unsigned TreeDecomposition::degeneracyLowerBound	(	const Graph &	graph,
		unsigned &	max_degree )

static

Degeneracy lower bound over an arbitrary graph.

Core of the BooleanCircuit overload (which builds the primal graph and delegates), usable directly on a data graph – e.g. the reachability compiler probes the edge relation's graph with it before paying for the min-fill construction. The graph is not mutated.

Parameters

graph	The graph.
max_degree	Output: the maximum degree.

Returns: A lower bound on the graph's treewidth.

Definition at line 65 of file TreeDecomposition.cpp.

Here is the call graph for this function:

◆ findGateConnection()

bag_t TreeDecomposition::findGateConnection ( gate_t v ) const

private

Find the bag whose gate set is closest to gate v (for rooting).

Parameters

v	Gate to search for.

Returns: ID of the bag that contains or is nearest to v.

Definition at line 138 of file TreeDecomposition.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getBag() [1/2]

Bag & TreeDecomposition::getBag ( bag_t b )

inlineprivate

Mutable access to bag b.

Parameters

b	Bag identifier.

Returns: Reference to the bag's gate set.

Definition at line 115 of file TreeDecomposition.h.

Here is the caller graph for this function:

◆ getBag() [2/2]

const Bag & TreeDecomposition::getBag ( bag_t b ) const

inline

Const access to bag b.

Parameters

b	Bag identifier.

Returns: Const reference to the bag's gate set.

Definition at line 180 of file TreeDecomposition.h.

◆ getChildren() [1/2]

std::vector< bag_t > & TreeDecomposition::getChildren ( bag_t b )

inlineprivate

Mutable access to the children of bag b.

Parameters

b	Bag identifier.

Returns: Reference to the vector of child bag IDs.

Definition at line 124 of file TreeDecomposition.h.

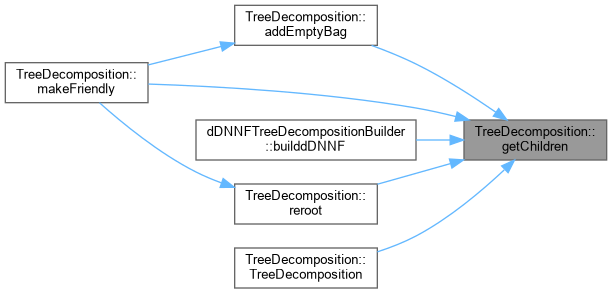

Here is the caller graph for this function:

◆ getChildren() [2/2]

const std::vector< bag_t > & TreeDecomposition::getChildren ( bag_t b ) const

inline

Const access to the children of bag b.

Parameters

b	Bag identifier.

Returns: Const reference to the vector of child bag IDs.

Definition at line 189 of file TreeDecomposition.h.

◆ getNbBags()

std::size_t TreeDecomposition::getNbBags ( ) const

inline

Return the number of bags in the decomposition.

Returns: Bag count.

Definition at line 214 of file TreeDecomposition.h.

Here is the caller graph for this function:

◆ getParent()

bag_t TreeDecomposition::getParent ( bag_t b ) const

inline

Return the parent of bag b.

Parameters

b	Bag identifier.

Returns: Parent bag identifier.

Definition at line 198 of file TreeDecomposition.h.

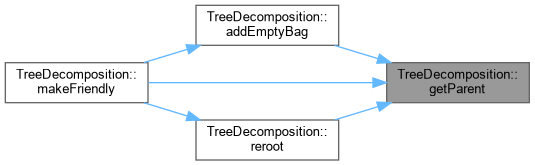

Here is the caller graph for this function:

◆ getRoot()

bag_t TreeDecomposition::getRoot ( ) const

inline

Return the root bag of the decomposition.

Returns: Root bag identifier.

Definition at line 206 of file TreeDecomposition.h.

Here is the caller graph for this function:

◆ getTreewidth()

unsigned TreeDecomposition::getTreewidth ( ) const

inline

Return the treewidth of this decomposition.

Returns: Treewidth (maximum bag size minus one).

Definition at line 239 of file TreeDecomposition.h.

Here is the caller graph for this function:

◆ makeFriendly()

void TreeDecomposition::makeFriendly ( gate_t root )

Restructure the tree into the friendly normal form.

Reroots the tree at the bag that covers the circuit's root gate and splits/merges bags so that dDNNFTreeDecompositionBuilder can process them efficiently.

Parameters

root	The gate that should be covered by the root bag.

Definition at line 156 of file TreeDecomposition.cpp.

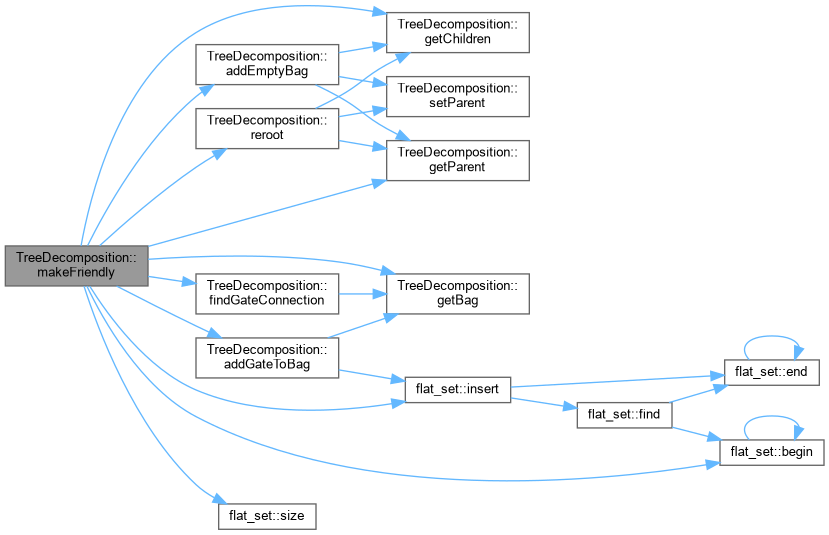

Here is the call graph for this function:

◆ operator=()

TreeDecomposition & TreeDecomposition::operator= ( const TreeDecomposition & td )

Copy assignment.

Parameters

td	Source decomposition.

Returns: Reference to this decomposition after assignment.

Here is the call graph for this function:

◆ reroot()

void TreeDecomposition::reroot ( bag_t bag )

private

Re-root the tree so that bag becomes the root.

Parameters

bag	The bag to use as the new root.

Definition at line 281 of file TreeDecomposition.cpp.

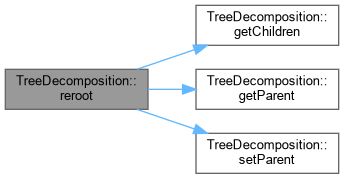

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setParent()

void TreeDecomposition::setParent	(	bag_t	b,
		bag_t	p )

inlineprivate

Set the parent of bag b to p.

Parameters

b	Bag whose parent is to be set.
p	New parent bag.

Definition at line 133 of file TreeDecomposition.h.

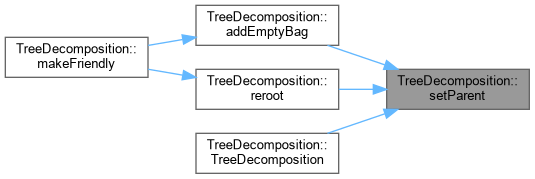

Here is the caller graph for this function:

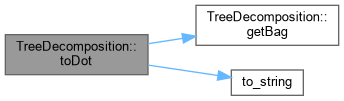

◆ toDot()

std::string TreeDecomposition::toDot ( ) const

Render the tree decomposition as a GraphViz DOT string.

Returns: DOT digraph string for visualisation.

Definition at line 303 of file TreeDecomposition.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dDNNFTreeDecompositionBuilder

friend class dDNNFTreeDecompositionBuilder

friend

Definition at line 297 of file TreeDecomposition.h.

◆ operator>>

std::istream & operator>>	(	std::istream &	in,
		TreeDecomposition &	td )

friend

Read a tree decomposition in PACE challenge format.

Parameters

in	Input stream.
td	Tree decomposition to populate.

Returns: Reference to in.

Definition at line 329 of file TreeDecomposition.cpp.

Member Data Documentation

◆ bags

std::vector<Bag> TreeDecomposition::bags

private

Bag contents, indexed by bag_t.

Definition at line 77 of file TreeDecomposition.h.

◆ children

std::vector<std::vector<bag_t> > TreeDecomposition::children

private

Children of each bag.

Definition at line 79 of file TreeDecomposition.h.

◆ MAX_TREEWIDTH

int TreeDecomposition::MAX_TREEWIDTH = 10

staticconstexpr

Maximum supported treewidth.

Circuits exceeding this cause an error.

Definition at line 61 of file TreeDecomposition.h.

◆ OPTIMAL_ARITY

int TreeDecomposition::OPTIMAL_ARITY = 2

staticconstexpr

Preferred maximum arity of bags in the friendly form.

Definition at line 63 of file TreeDecomposition.h.

◆ parent

std::vector<bag_t> TreeDecomposition::parent

private

Parent of each bag (root points to itself).

Definition at line 78 of file TreeDecomposition.h.

◆ root

bag_t TreeDecomposition::root

private

Identifier of the root bag.

Definition at line 80 of file TreeDecomposition.h.

◆ treewidth

unsigned TreeDecomposition::treewidth

private

Treewidth of the decomposition.

Definition at line 81 of file TreeDecomposition.h.

The documentation for this class was generated from the following files:

/home/senellar/git/software/provsql/src/TreeDecomposition.h
/home/senellar/git/software/provsql/src/TreeDecomposition.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Bag

◆ small_vector

Constructor & Destructor Documentation

◆ TreeDecomposition() [1/5]

◆ TreeDecomposition() [2/5]

◆ TreeDecomposition() [3/5]

◆ TreeDecomposition() [4/5]

◆ TreeDecomposition() [5/5]

Member Function Documentation

◆ addEmptyBag()

◆ addGateToBag()

◆ degeneracyLowerBound() [1/2]

◆ degeneracyLowerBound() [2/2]

◆ findGateConnection()

◆ getBag() [1/2]

◆ getBag() [2/2]

◆ getChildren() [1/2]

◆ getChildren() [2/2]

◆ getNbBags()

◆ getParent()

◆ getRoot()

◆ getTreewidth()

◆ makeFriendly()

◆ operator=()

◆ reroot()

◆ setParent()

◆ toDot()

Friends And Related Symbol Documentation

◆ dDNNFTreeDecompositionBuilder

◆ operator>>

Member Data Documentation

◆ bags

◆ children

◆ MAX_TREEWIDTH

◆ OPTIMAL_ARITY

◆ parent

◆ root

◆ treewidth
