SQL function provsql.provenance_evaluate_compiled() – C++ semiring evaluation. More...

#include "postgres.h"
#include "fmgr.h"
#include "catalog/pg_type.h"
#include "utils/uuid.h"
#include "utils/lsyscache.h"
#include "provsql_shmem.h"
#include "provsql_utils.h"
#include <string>
#include <sstream>
#include <vector>
#include <unordered_map>
#include <algorithm>
#include "having_semantics.hpp"
#include "provenance_evaluate_compiled.hpp"
#include "semiring/Boolean.h"
#include "semiring/Counting.h"
#include "semiring/Formula.h"
#include "semiring/Why.h"
#include "semiring/BoolExpr.h"

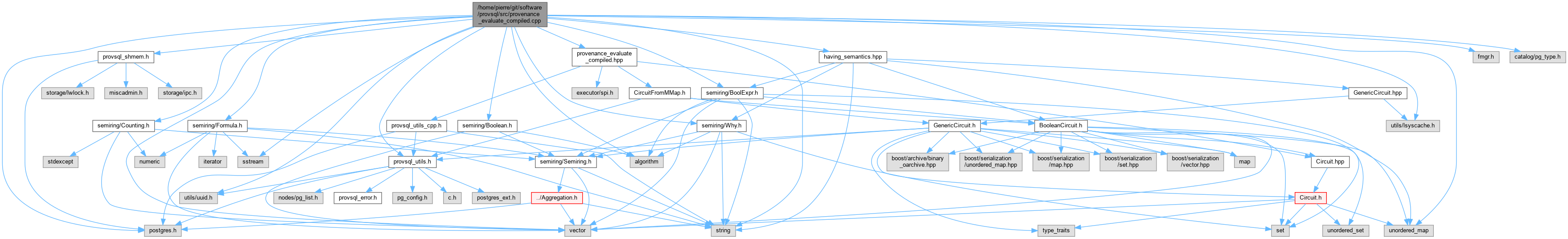

Include dependency graph for provenance_evaluate_compiled.cpp:

Go to the source code of this file.

Functions
static Datum	pec_bool (const constants_t &constants, GenericCircuit &c, gate_t g, const std::set< gate_t > &inputs, const std::string &semiring, bool drop_table)
	Evaluate the Boolean semiring provenance for a circuit.

static Datum	pec_boolexpr (const constants_t &constants, BooleanCircuit &bc, gate_t root)
	Evaluate the Boolean-expression semiring provenance for a circuit.

static Datum	pec_why (const constants_t &constants, GenericCircuit &c, gate_t g, const std::set< gate_t > &inputs, bool drop_table)
	Evaluate the Why-provenance semiring for a circuit.

static Datum	pec_varchar (const constants_t &constants, GenericCircuit &c, gate_t g, const std::set< gate_t > &inputs, const std::string &semiring, bool drop_table)
	Evaluate a varchar semiring provenance for a circuit.

static Datum	pec_int (const constants_t &constants, GenericCircuit &c, gate_t g, const std::set< gate_t > &inputs, const std::string &semiring, bool drop_table)
	Evaluate an integer semiring provenance for a circuit.

bool	join_with_temp_uuids (Oid table, const std::vector< std::string > &uuids)
	Join a provenance mapping table with a set of UUIDs using SPI.

static Datum	provenance_evaluate_compiled_internal (pg_uuid_t token, Oid table, const std::string &semiring, Oid type)
	Core implementation of compiled provenance evaluation.

Datum	provenance_evaluate_compiled (PG_FUNCTION_ARGS)
	PostgreSQL-callable wrapper for provenance_evaluate_compiled().

Variables
const char *	drop_temp_table = "DROP TABLE IF EXISTS tmp_uuids;"
	DROP TABLE statement for the per-query temporary provenance mapping table.

Detailed Description

SQL function provsql.provenance_evaluate_compiled() – C++ semiring evaluation.

Implements the compiled (C++ generic) variant of provenance circuit evaluation. Unlike provenance_evaluate() (which calls user-supplied PostgreSQL functions for each semiring operation), this function evaluates the circuit using one of the built-in C++ semiring implementations from the semiring/ directory.

Supported semirings (selected by the semiring argument):

"boolean" → semiring::Boolean
"counting" → semiring::Counting
"formula" → semiring::Formula (symbolic expression)
"why" → semiring::Why (witness sets)
"boolexpr" → semiring::BoolExpr (Boolean circuit for probability)

The function first builds a provenance mapping (input-gate UUID → semiring value) by querying the tmp_uuids table via SPI (using initialize_provenance_mapping()), then evaluates the GenericCircuit with GenericCircuit::evaluate() and returns the result as text.

Definition in file provenance_evaluate_compiled.cpp.

Function Documentation

◆ join_with_temp_uuids()

bool join_with_temp_uuids	(	Oid	table,
		const std::vector< std::string > &	uuids
	)

Join a provenance mapping table with a set of UUIDs using SPI.

Parameters

table	OID of the provenance mapping relation.
uuids	List of UUID strings to join against.

Returns: true if a temporary table was created (caller must drop it).

Definition at line 245 of file provenance_evaluate_compiled.cpp.

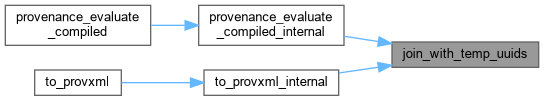

Here is the caller graph for this function:

◆ pec_bool()

static Datum pec_bool	(	const constants_t &	constants,
		GenericCircuit &	c,
		gate_t	g,
		const std::set< gate_t > &	inputs,
		const std::string &	semiring,
		bool	drop_table
	)

static

Evaluate the Boolean semiring provenance for a circuit.

Parameters

constants	Extension OID cache.
c	Generic circuit to evaluate.
g	Root gate of the sub-circuit.
inputs	Set of input gate IDs.
semiring	Semiring name (must be "boolean").
drop_table	Whether the temporary UUID table should be dropped.

Returns: Bool datum with the evaluated provenance.

Definition at line 63 of file provenance_evaluate_compiled.cpp.

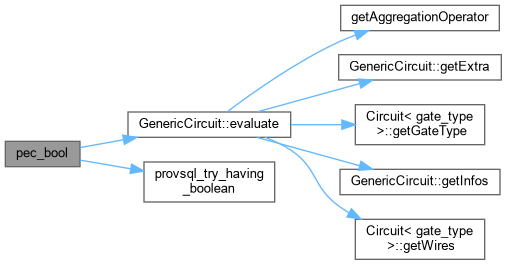

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pec_boolexpr()

static Datum pec_boolexpr	(	const constants_t &	constants,
		BooleanCircuit &	bc,
		gate_t	root
	)

static

Evaluate the Boolean-expression semiring provenance for a circuit.

Parameters

constants	Extension OID cache.
bc	Boolean circuit to render as a formula.
root	Root gate of the circuit.

Returns: Text datum with the formula string.

Definition at line 92 of file provenance_evaluate_compiled.cpp.

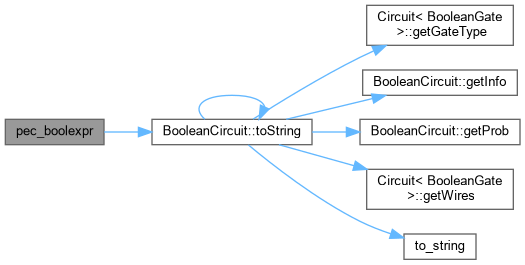

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pec_int()

static Datum pec_int	(	const constants_t &	constants,
		GenericCircuit &	c,
		gate_t	g,
		const std::set< gate_t > &	inputs,
		const std::string &	semiring,
		bool	drop_table
	)

static

Evaluate an integer semiring provenance for a circuit.

Parameters

constants	Extension OID cache.
c	Generic circuit to evaluate.
g	Root gate.
inputs	Set of input gate IDs.
semiring	Semiring name (e.g. "counting").
drop_table	Whether the temporary UUID table should be dropped.

Returns: Int32 datum with the evaluated provenance.

Definition at line 216 of file provenance_evaluate_compiled.cpp.

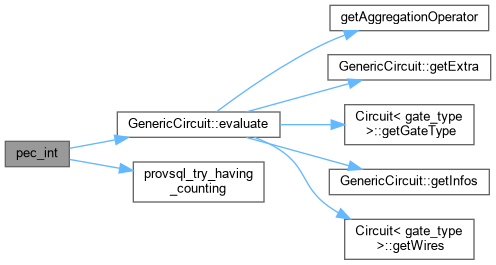

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pec_varchar()

static Datum pec_varchar	(	const constants_t &	constants,
		GenericCircuit &	c,
		gate_t	g,
		const std::set< gate_t > &	inputs,
		const std::string &	semiring,
		bool	drop_table
	)

static

Evaluate a varchar semiring provenance for a circuit.

Parameters

constants	Extension OID cache.
c	Generic circuit to evaluate.
g	Root gate.
inputs	Set of input gate IDs.
semiring	Semiring name (e.g. "formula").
drop_table	Whether the temporary UUID table should be dropped.

Returns: Varchar datum containing the serialised provenance.

Definition at line 177 of file provenance_evaluate_compiled.cpp.

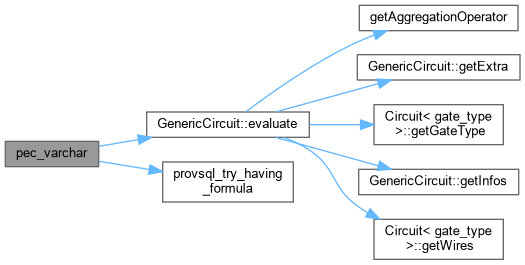

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pec_why()

static Datum pec_why	(	const constants_t &	constants,
		GenericCircuit &	c,
		gate_t	g,
		const std::set< gate_t > &	inputs,
		bool	drop_table
	)

static

Evaluate the Why-provenance semiring for a circuit.

Parameters

constants	Extension OID cache.
c	Generic circuit to evaluate.
g	Root gate.
inputs	Set of input gate IDs.
drop_table	Whether the temporary UUID table should be dropped.

Returns: Varchar datum containing the serialised Why-provenance.

Definition at line 114 of file provenance_evaluate_compiled.cpp.

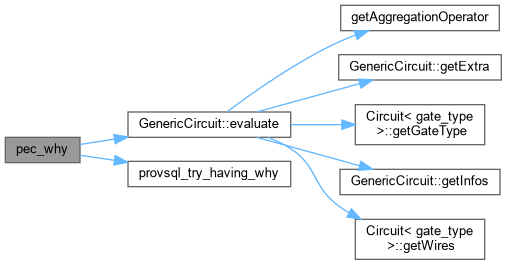

Here is the call graph for this function:

Here is the caller graph for this function:

◆ provenance_evaluate_compiled()

Datum provenance_evaluate_compiled ( PG_FUNCTION_ARGS )

PostgreSQL-callable wrapper for provenance_evaluate_compiled().

Definition at line 369 of file provenance_evaluate_compiled.cpp.

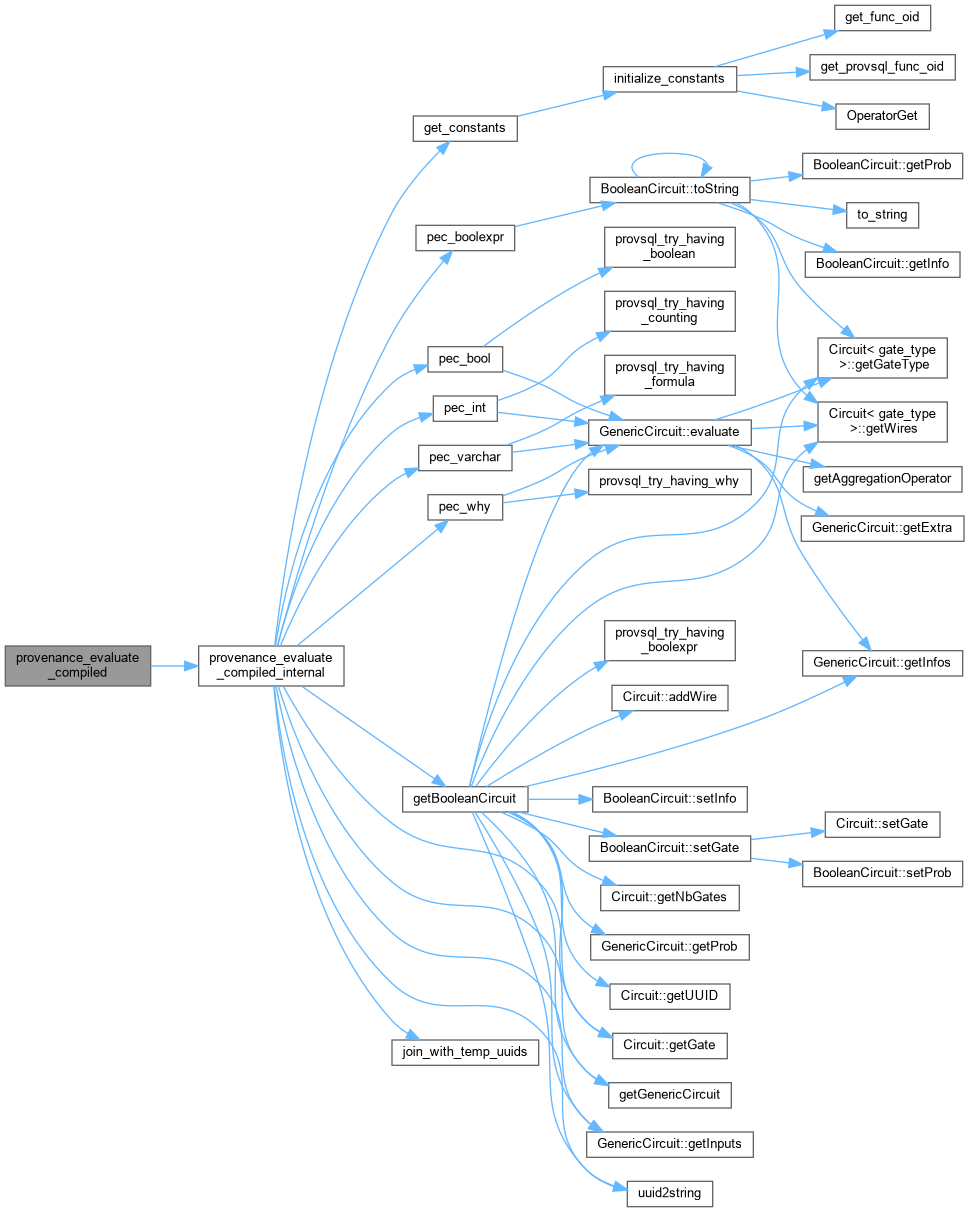

Here is the call graph for this function:

◆ provenance_evaluate_compiled_internal()

static Datum provenance_evaluate_compiled_internal	(	pg_uuid_t	token,
		Oid	table,
		const std::string &	semiring,
		Oid	type
	)

static

Core implementation of compiled provenance evaluation.

Parameters

token	UUID of the root provenance gate.
table	OID of the provenance mapping relation.
semiring	Name of the semiring to evaluate over.
type	OID of the result element type.
