TreeDecompositionKnowledgeCompiler.cpp File Reference

Standalone tdkc tool: tree-decomposition-based knowledge compiler. More...

#include <iostream>
#include <fstream>
#include <iomanip>
#include <sys/time.h>
#include "dDNNFTreeDecompositionBuilder.h"
#include "Circuit.hpp"

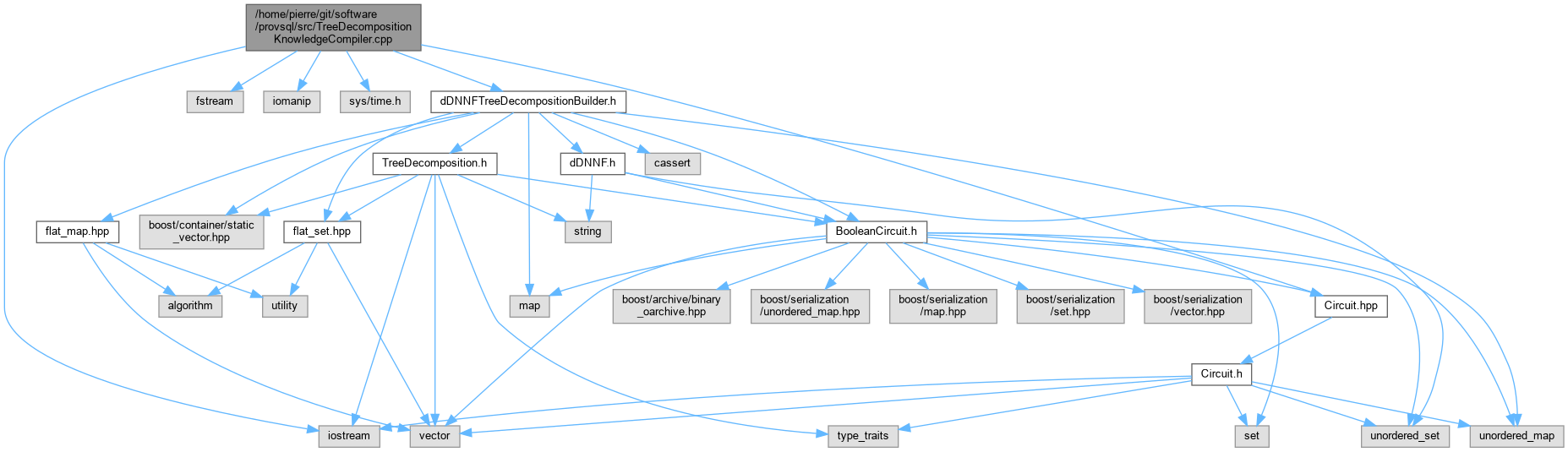

Include dependency graph for TreeDecompositionKnowledgeCompiler.cpp:

Go to the source code of this file.

Functions
static double	get_timestamp ()
	Return the current time as a floating-point number of seconds.
int	main (int argc, char **argv)
	Entry point for the standalone tree-decomposition knowledge compiler.

Detailed Description

Standalone tdkc tool: tree-decomposition-based knowledge compiler.

This file contains the main() entry point for the standalone tdkc (Tree-Decomposition Knowledge Compiler) binary. It is built separately from the PostgreSQL extension (see Makefile target tdkc).

Usage:

tdkc <circuit_file>

The circuit file is a text file produced by BooleanCircuit::exportCircuit() listing the number of gates followed by one line per gate describing its type, probability, and children.

The tool:

1. Reads the circuit from the file.
2. Rewrites multivalued gates.
3. Computes a tree decomposition.
4. Builds a d-DNNF via dDNNFTreeDecompositionBuilder.
5. Evaluates the probability and prints it to stdout.

Timing information is printed to stderr.

Definition in file TreeDecompositionKnowledgeCompiler.cpp.

Function Documentation

get_timestamp()

static double get_timestamp ( )

static

Return the current time as a floating-point number of seconds.

Returns

Current time (seconds since the epoch, with microsecond precision).

Definition at line 42 of file TreeDecompositionKnowledgeCompiler.cpp.

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Entry point for the standalone tree-decomposition knowledge compiler.

Parameters

argc	Argument count; must be 2.
argv	Argument vector; argv[1] is the path to the circuit file.

Returns

0 on success, non-zero on error.

Definition at line 55 of file TreeDecompositionKnowledgeCompiler.cpp.

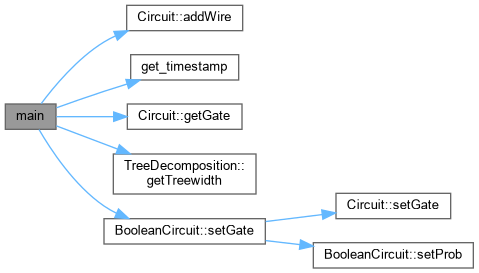

Here is the call graph for this function:
