RandomVariable.h File Reference

Continuous random-variable helpers (distribution parsing, moments). More...

#include <optional>
#include <string>

Include dependency graph for RandomVariable.h:

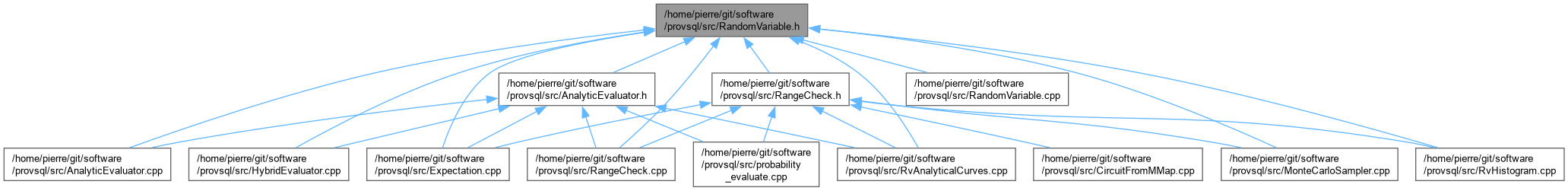

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	provsql::DistributionSpec
	Parsed distribution spec (family + up to two parameters). More...
struct	provsql::DistributionParam
	One parameter slot of a gate_rv, either a literal or a wire. More...
struct	provsql::DistributionTemplate
	A gate_rv distribution spec that may carry wired (token) parameters – the parse-time counterpart of DistributionSpec. More...

Namespaces
namespace	provsql

Functions
std::optional< DistributionTemplate >	provsql::parse_distribution_template (const std::string &s)
	Parse the on-disk text encoding of a gate_rv distribution, keeping wired (token) parameters as wire references.
std::optional< DistributionSpec >	provsql::parse_distribution_spec (const std::string &s)
	Parse the on-disk text encoding of a gate_rv distribution.
double	provsql::parseDoubleStrict (const std::string &s)
	Strictly parse s as a double.
std::string	provsql::double_to_text (double v)
	Format a double back into the canonical text form used by gate_value extras and gate_rv distribution parameters (the serialisation counterpart of parseDoubleStrict).
double	provsql::analytical_mean (const DistributionSpec &d)
	Closed-form expectation E[X] for a basic distribution.
double	provsql::analytical_variance (const DistributionSpec &d)
	Closed-form variance Var(X) for a basic distribution.
double	provsql::analytical_raw_moment (const DistributionSpec &d, unsigned k)
	Closed-form raw moment \(E[X^k]\) for a basic distribution.

Detailed Description

Continuous random-variable helpers (distribution parsing, moments).

Helpers for the gate_rv leaf introduced for continuous probabilistic c-tables. A gate_rv stores its distribution name and parameters in the gate's extra byte string using a small text encoding (e.g. "normal:2.5,0.5"); these helpers parse and format that encoding, and provide closed-form moments where they exist. Arithmetic over RV expressions is built on the generic gate_arith gate (see provsql_utils.h), which is shared with non-RV scalar arithmetic.

Sampling itself lives in BooleanCircuit::monteCarlo and MonteCarloSampler; this header only exposes what is needed for parsing and analytical moment computation.

Definition in file RandomVariable.h.
