BooleanCircuit.cpp File Reference

Boolean circuit implementation and evaluation algorithms. More...

#include "BooleanCircuit.h"
#include "Circuit.hpp"
#include <type_traits>
#include <unistd.h>
#include <sys/wait.h>
#include <math.h>
#include <cassert>
#include <cstdint>
#include <string>
#include <fstream>
#include <sstream>
#include <cstdlib>
#include <iostream>
#include <random>
#include <vector>
#include <stack>
#include <functional>
#include <algorithm>
#include <boost/archive/text_oarchive.hpp>
#include <boost/archive/text_iarchive.hpp>
#include "dDNNFTreeDecompositionBuilder.h"
#include "external_tool.h"
#include "ToolRegistry.h"
#include "kcmcp_client.h"
#include "provsql_utils.h"
#include "utils/elog.h"
#include "miscadmin.h"
#include "provsql_error.h"
#include "scoped_tempdir.h"

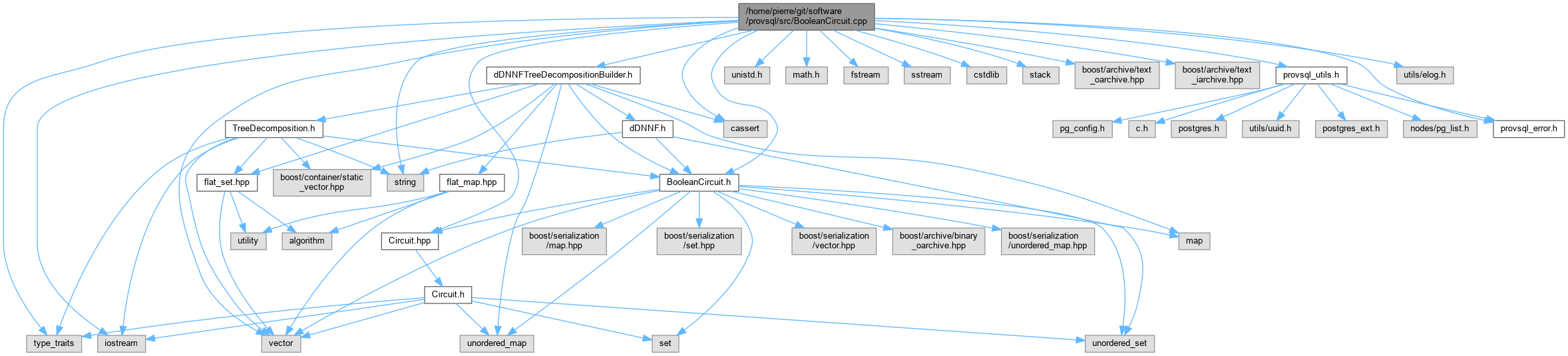

Include dependency graph for BooleanCircuit.cpp:

Go to the source code of this file.

Classes
class	ScopedTempDir
	RAII guard around a freshly mkdtemp'd /tmp directory. More...

Functions
static std::string	selectTool (const std::string &operation, const std::string &preferred="")
static std::string	chooseCompiler ()
static constexpr bool	almost_equals (double a, double b)
	Check whether two double values are approximately equal.

Variables
static const size_t	kSieveMaxClauses = 24
	Largest clause count for which the 2^m sieve enumeration is admitted.

Detailed Description

Boolean circuit implementation and evaluation algorithms.

Implements the methods declared in BooleanCircuit.h, including:

• Gate management (addGate, setGate, setInfo, setProb).
• Probability evaluation algorithms: possible worlds, Monte Carlo, WeightMC, independent evaluation.
• Knowledge compilation: compilation() (external tools), interpretAsDD() (direct from circuit structure), makeDD() (dispatcher).
• rewriteMultivaluedGates(): replaces MULVAR/MULIN clusters with standard AND/OR/NOT circuits.
• TseytinCNF(): DIMACS/weighted CNF generation for model counters.
• exportCircuit(): serialisation in the tdkc text format.
• toString(): human-readable gate description.

In the standalone tdkc build (when TDKC is defined) a lightweight elog() stub replaces the PostgreSQL error-reporting function.

Definition in file BooleanCircuit.cpp.

Function Documentation

almost_equals()

constexpr bool almost_equals ( double a, double b )

staticconstexpr

Check whether two double values are approximately equal.

Parameters

a	First value.
b	Second value.

Returns

true if a and b differ by less than 10× machine epsilon.

Definition at line 1953 of file BooleanCircuit.cpp.

Here is the caller graph for this function:

chooseCompiler()

std::string chooseCompiler ( )

static

Definition at line 1214 of file BooleanCircuit.cpp.

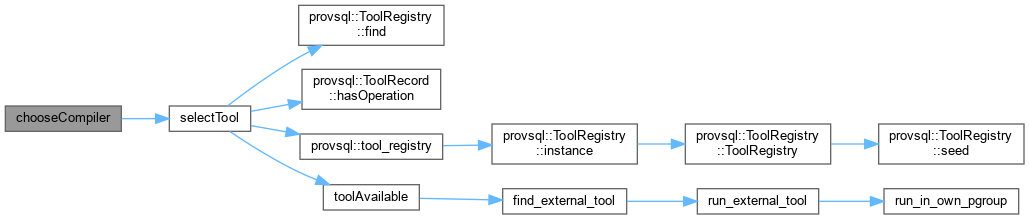

Here is the call graph for this function:

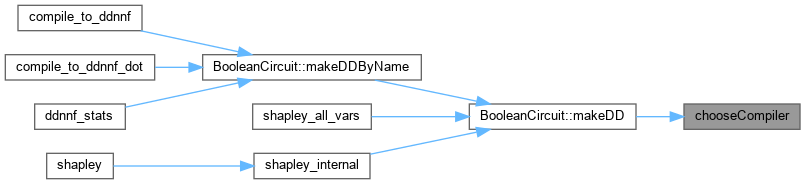

Here is the caller graph for this function:

selectTool()

std::string selectTool ( const std::string & operation, const std::string & preferred = "" )

static

Definition at line 1193 of file BooleanCircuit.cpp.

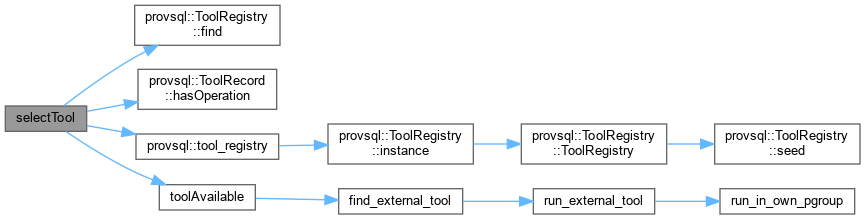

Here is the call graph for this function:

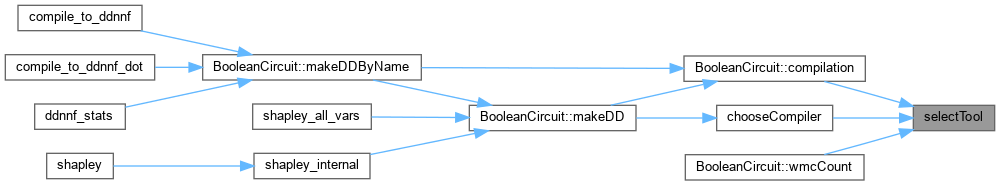

Here is the caller graph for this function:

Variable Documentation

kSieveMaxClauses

const size_t kSieveMaxClauses = 24

static

Largest clause count for which the 2^m sieve enumeration is admitted.

Definition at line 716 of file BooleanCircuit.cpp.
