to_prov.cpp File Reference

SQL function provsql.to_provxml() – XML/JSON circuit export. More...

#include "postgres.h"
#include "fmgr.h"
#include "catalog/pg_type.h"
#include "utils/uuid.h"
#include "provsql_shmem.h"
#include "provsql_utils.h"
#include <set>
#include <csignal>
#include <utility>
#include <sstream>
#include <list>
#include <algorithm>
#include "provenance_evaluate_compiled.hpp"

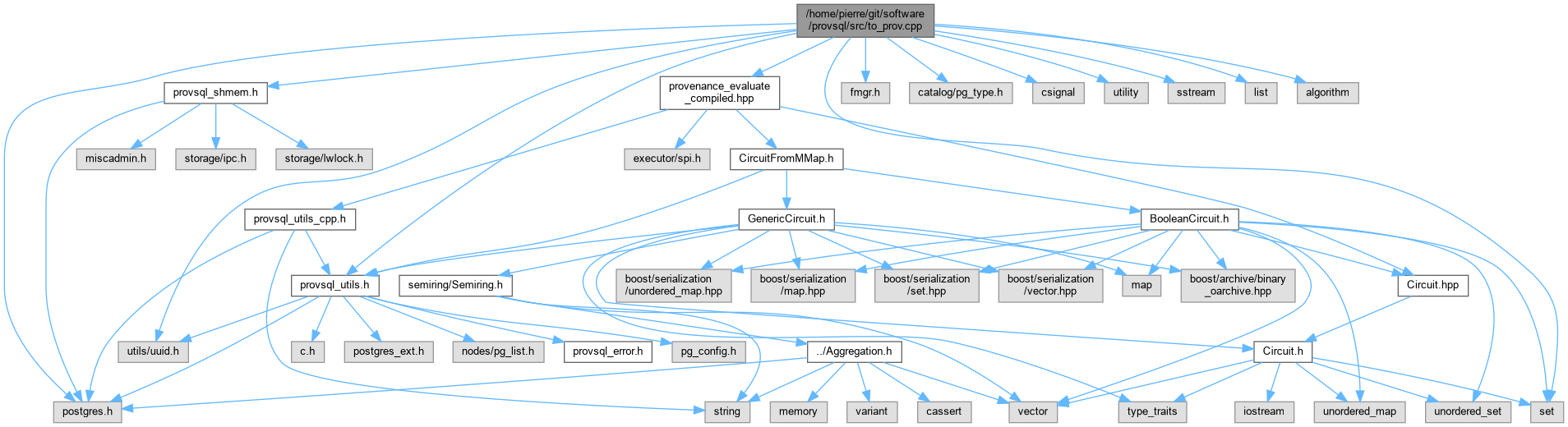

Include dependency graph for to_prov.cpp:

Go to the source code of this file.

Functions
static string	xmlEscape (const std::string &input)
	Escape special XML characters in input.
bool	join_with_temp_uuids (Oid table, const std::vector< std::string > &uuids)
	Join a provenance mapping table with a set of UUIDs using SPI.
static string	to_provxml_internal (Datum tokenDatum, Datum table)
	Build an XML provenance representation for a circuit token.
Datum	to_provxml (PG_FUNCTION_ARGS)
	PostgreSQL-callable wrapper for to_provxml().

Variables
const char *	drop_temp_table
	DROP TABLE statement for the per-query temporary provenance mapping table.

Detailed Description

SQL function provsql.to_provxml() – XML/JSON circuit export.

Implements provsql.to_provxml(), which serialises the provenance circuit rooted at a given UUID token to an XML string. The XML representation can be used for export, interchange, or display.

The implementation retrieves the circuit from the mmap store via SPI, traverses it depth-first, and builds the XML document using string operations. Special XML characters in node labels are escaped by the local xmlEscape() helper.

Definition in file to_prov.cpp.

Function Documentation

join_with_temp_uuids()

bool join_with_temp_uuids	(	Oid	table,
		const std::vector< std::string > &	uuids
	)

Join a provenance mapping table with a set of UUIDs using SPI.

Parameters

table	OID of the provenance mapping relation.
uuids	List of UUID strings to join against.

Returns

true if a temporary table was created (caller must drop it).

Definition at line 245 of file provenance_evaluate_compiled.cpp.

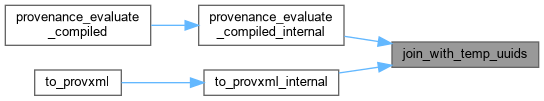

Here is the caller graph for this function:

to_provxml()

Datum to_provxml

(

PG_FUNCTION_ARGS

)

PostgreSQL-callable wrapper for to_provxml().

Definition at line 136 of file to_prov.cpp.

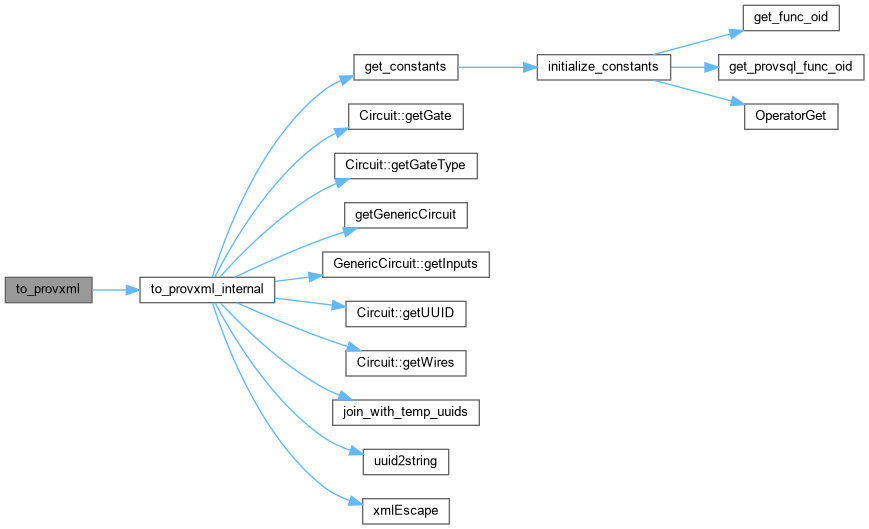

Here is the call graph for this function:

to_provxml_internal()

static string to_provxml_internal ( Datum  tokenDatum, Datum  table  )

static

Build an XML provenance representation for a circuit token.

Parameters

tokenDatum	Datum containing the root provenance gate UUID.
table	Datum with the OID of the provenance mapping table.

Returns

XML string describing the provenance circuit.

Definition at line 65 of file to_prov.cpp.

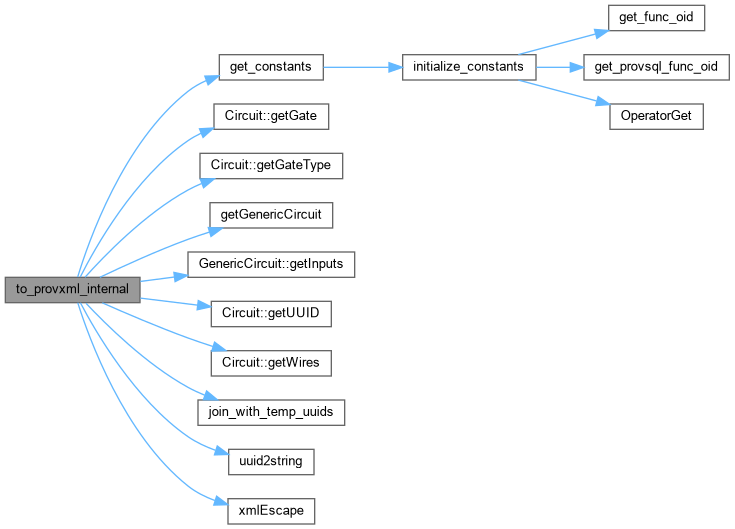

Here is the call graph for this function:

Here is the caller graph for this function:

xmlEscape()

static string xmlEscape ( const std::string &  input )

static

Escape special XML characters in input.

Parameters

input

String to escape.

Returns

Escaped string suitable for embedding in XML.

Definition at line 42 of file to_prov.cpp.

Here is the caller graph for this function:

Variable Documentation

drop_temp_table

const char* drop_temp_table

extern

DROP TABLE statement for the per-query temporary provenance mapping table.

Definition at line 51 of file provenance_evaluate_compiled.cpp.
