qual_classify.c File Reference

Implementation of the shared predicate-tree classification helpers. More...

#include "postgres.h"
#include "nodes/parsenodes.h"
#include "nodes/pg_list.h"
#include "nodes/bitmapset.h"
#include "nodes/makefuncs.h"
#include "nodes/nodeFuncs.h"
#include "optimizer/clauses.h"
#include "qual_classify.h"
#include "provsql_utils.h"

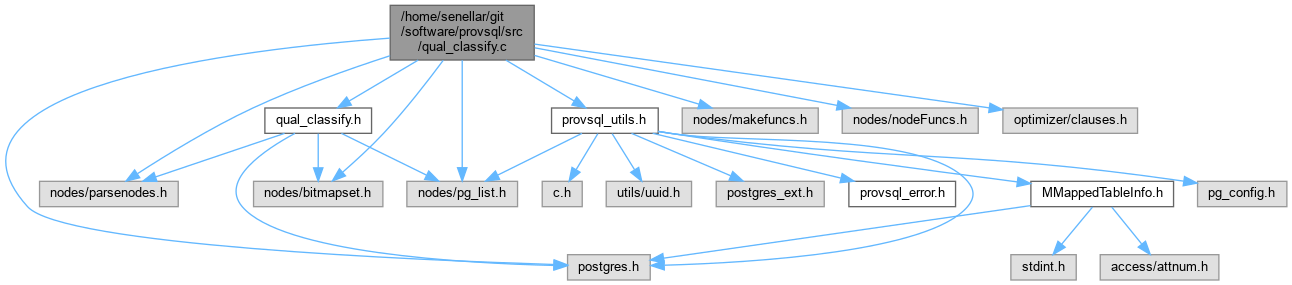

Include dependency graph for qual_classify.c:

Go to the source code of this file.

Functions
bool	qc_collect_vars_walker (Node *node, qc_vars_ctx *ctx)
	Tree walker that collects every distinct base-level Var node (varlevelsup == 0), deduplicated by (varno, varattno).
int	qc_var_index (List *vars, Index varno, AttrNumber varattno)
	Position of a Var inside vars (matched on (varno, varattno)); -1 if absent.
bool	qc_is_var_eq (Expr *qual, Var **l, Var **r)
	Recognise a conjunct equating two base Vars (the canonical equality for the operand types, through RelabelType casts).
bool	qc_is_var_const_eq (Expr *qual, Var **var, Const **konst)
	Recognise a conjunct of shape Var=Const (either order, through RelabelType casts; non-NULL literal, canonical equality).
void	qc_collect_equalities (Node *quals, List **out)
	Walk quals as an AND tree, appending each Var=Var equijoin's two Vars (left, right) to *out.
bool	qc_collect_varnos_walker (Node *node, qc_varnos_ctx *ctx)
	Collect the distinct base-level varno values referenced by a sub-tree (used to tell a single-relation selection from a cross-relation predicate).
void	qc_flatten_and (Node *n, List **out)
	Flatten the top-level AND tree of a qual into a flat list of leaf conjuncts (a bare List is an implicit AND).
void	qc_split_quals (Node *quals, int natoms, List **per_atom_out, Node **out_residual)
	Partition top-level conjuncts into atom-local selections and the cross-atom residual.

Detailed Description

Implementation of the shared predicate-tree classification helpers.

See qual_classify.h.

Definition in file qual_classify.c.

Function Documentation

qc_collect_equalities()

void qc_collect_equalities	(	Node *	quals,
		List **	out )

Walk quals as an AND tree, appending each Var=Var equijoin's two Vars (left, right) to *out.

OR / NOT are not traversed (they are not equijoins).

Definition at line 126 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_collect_varnos_walker()

bool qc_collect_varnos_walker	(	Node *	node,
		qc_varnos_ctx *	ctx )

Collect the distinct base-level varno values referenced by a sub-tree (used to tell a single-relation selection from a cross-relation predicate).

Definition at line 154 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_collect_vars_walker()

bool qc_collect_vars_walker	(	Node *	node,
		qc_vars_ctx *	ctx )

Tree walker that collects every distinct base-level Var node (varlevelsup == 0), deduplicated by (varno, varattno).

Definition at line 21 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_flatten_and()

void qc_flatten_and	(	Node *	n,
		List **	out )

Flatten the top-level AND tree of a qual into a flat list of leaf conjuncts (a bare List is an implicit AND).

The result shares pointers with the input; copyObject before mutating.

Definition at line 167 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_is_var_const_eq()

bool qc_is_var_const_eq	(	Expr *	qual,
		Var **	var,
		Const **	konst )

Recognise a conjunct of shape Var=Const (either order, through RelabelType casts; non-NULL literal, canonical equality).

Fills *var, *konst on match.

Definition at line 86 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_is_var_eq()

bool qc_is_var_eq	(	Expr *	qual,
		Var **	l,
		Var **	r )

Recognise a conjunct equating two base Vars (the canonical equality for the operand types, through RelabelType casts).

Fills *l, *r on match.

Definition at line 54 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_split_quals()

void qc_split_quals	(	Node *	quals,
		int	natoms,
		List **	per_atom_out,
		Node **	out_residual )

Partition top-level conjuncts into atom-local selections and the cross-atom residual.

per_atom_out is a caller-allocated, zero-initialised array of length natoms; a conjunct whose base Vars all reference a single varno (1..natoms) and that is non-volatile lands in that atom's list, the rest in *out_residual (rebuilt as NULL / the lone conjunct / a fresh AND). Volatile predicates stay in the residual (the inner DISTINCT must not change their evaluation count).

Definition at line 186 of file qual_classify.c.

Here is the call graph for this function:

Here is the caller graph for this function:

qc_var_index()

int qc_var_index	(	List *	vars,
		Index	varno,
		AttrNumber	varattno )

Position of a Var inside vars (matched on (varno, varattno)); -1 if absent.

Definition at line 41 of file qual_classify.c.

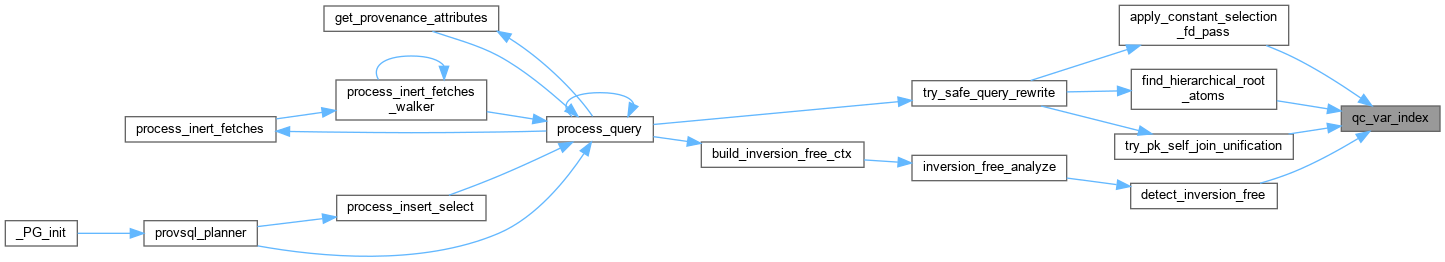

Here is the caller graph for this function:
