kcmcp_protocol.h File Reference

Wire codec for KCMCP, the Knowledge Compiler / Model Counter Protocol (see doc/source/dev/kc-server-protocol.rst). More...

#include <cstdint>
#include <stdexcept>
#include <string>

Include dependency graph for kcmcp_protocol.h:

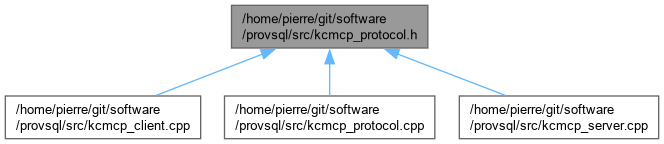

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcmcp::ProtocolError
	Thrown by Connection on a protocol violation that warrants an ERROR frame (e.g. More...
struct	kcmcp::Message
	A fully reassembled inbound message (MORE frames concatenated). More...
struct	kcmcp::Request
	Decoded REQUEST payload. More...
class	kcmcp::Connection
	Framed message transport over one connected socket fd. More...

Namespaces
namespace	kcmcp

Enumerations
enum class	kcmcp::Type : uint8_t {   kcmcp::HELLO = 0x00 , kcmcp::REQUEST = 0x01 , kcmcp::RESULT = 0x02 , kcmcp::ERROR = 0x03 ,   kcmcp::PROGRESS = 0x04 , kcmcp::CANCEL = 0x05 , kcmcp::PING = 0x06 , kcmcp::PONG = 0x07 ,   kcmcp::BYE = 0x08 }
	Frame type (header byte 0). More...
enum	kcmcp::Flag : uint8_t { kcmcp::FLAG_MORE = 0x01 , kcmcp::FLAG_COMPRESSED = 0x02 }
	Frame flags (header byte 1). More...
enum class	kcmcp::Operation : uint8_t { kcmcp::COUNT = 0 , kcmcp::WMC = 1 , kcmcp::COMPILE = 2 }
	Operation registry (REQUEST byte 0 / HELLO operations names). More...
enum class	kcmcp::InputFormat : uint8_t { kcmcp::DIMACS_CNF = 0 , kcmcp::CIRCUIT_BCS12 = 1 }
	Input-format registry (REQUEST byte 1). More...
enum class	kcmcp::OutputFormat : uint8_t {   kcmcp::DECIMAL = 0 , kcmcp::RATIONAL = 1 , kcmcp::DOUBLE = 2 , kcmcp::BIGINT = 3 ,   kcmcp::DDNNF_NNF = 4 }
	Output-format registry (REQUEST byte 2 / RESULT byte 0; one shared space). More...
enum class	kcmcp::ErrorCode : uint16_t {   kcmcp::UNSUPPORTED_OPERATION = 1 , kcmcp::UNSUPPORTED_FORMAT = 2 , kcmcp::PARSE = 3 , kcmcp::TIMEOUT = 4 ,   kcmcp::CANCELLED = 5 , kcmcp::INTERNAL = 6 , kcmcp::PAYLOAD_TOO_LARGE = 7 , kcmcp::UNSUPPORTED_VERSION = 8 ,   kcmcp::COMPRESSION_UNSUPPORTED = 9 }
	ERROR codes. More...

Functions
const char *	kcmcp::operation_name (Operation op)
const char *	kcmcp::input_format_name (InputFormat fmt)
const char *	kcmcp::output_format_name (OutputFormat fmt)
bool	kcmcp::parse_request (const std::string &payload, Request &out)
	Decode a REQUEST payload; returns false if structurally malformed.
std::string	kcmcp::build_result (OutputFormat fmt, const std::string &meta_json, const std::string &result)
	Build a RESULT payload (result_format byte + meta JSON + result bytes).
std::string	kcmcp::build_error (ErrorCode code, const std::string &message)
	Build an ERROR payload (u16 code + UTF-8 message).

Detailed Description

Wire codec for KCMCP, the Knowledge Compiler / Model Counter Protocol (see doc/source/dev/kc-server-protocol.rst).

A small, dependency-free C++ layer over a connected stream socket: the 10-byte frame header, MORE-chunked message reassembly, and pack/unpack of the REQUEST / RESULT / ERROR payloads and the operation / format / error registries. It is used by the tdkc reference server and is written to be reusable by a future ProvSQL client. No PostgreSQL dependency.

Definition in file kcmcp_protocol.h.
